Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer

Description
Tool Changer: Carousel Tool Changer / Side-mount Tool Changer X Axis Travel: 900mm
Y Axis Travel: 500mm Z Axis Travel: 500mm
Cutting Rapid Feed: 8000mm/min Work Table Size: 1500x420mm
Positioning Accuracy: 0.01mm Repeat Positioning Accuracy: 0.008mm
High Light:

Carousel High Speed VMC Machine

,

High Speed VMC Machine Vertical

Carousel Tool Changer / Side-Mount Tool Changer High Speed CNC Vertical Machine Center



Product Description:

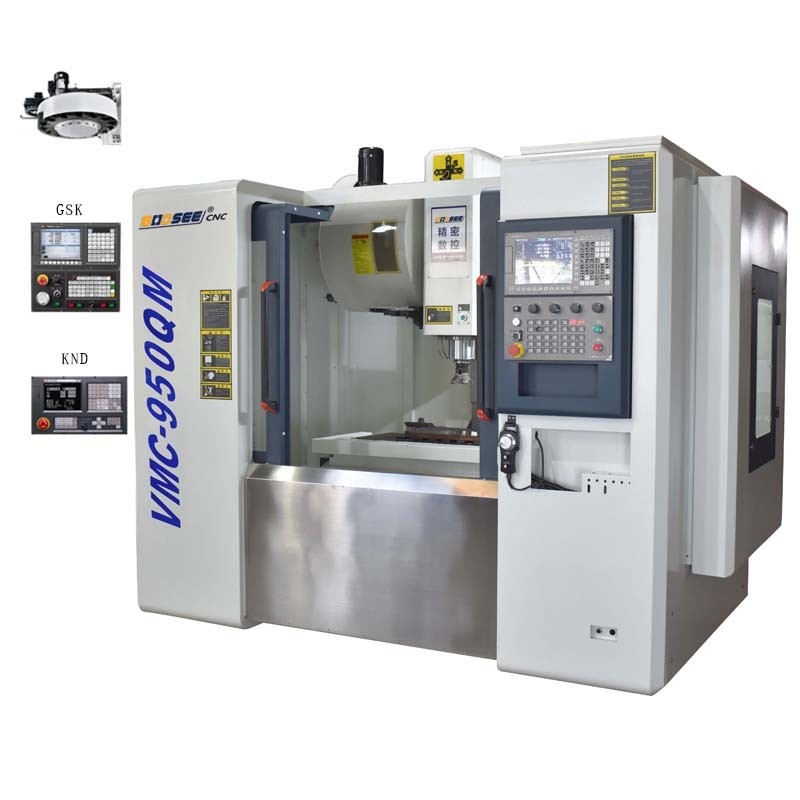

CNC-950QM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system.It is suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity. The machine is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries.



Product Specification:



Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG





Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer 0

Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer 1





Product Features:

1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron. It adopts special casting process to improve the mechanical properties of materials. After annealing treatment and vibration aging, remove stress to ensure good rigidity and damping characteristic when the machine tool is used for cutting. At the same time, it has good thermal stability and stabilization precision.

2. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.

3. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process. So that the machine tool not only has the characteristics of high speed and high precision, but also has the characteristics of heavy cutting, excellent rigidity and excellent production efficiency.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer 2

Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer 3





FAQ:
1. How to send my enquiry?
A: You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
Q4. What's the MOQ?
A: MOQ is 1 set.
Q5. What is your delivery time ?

A: The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
