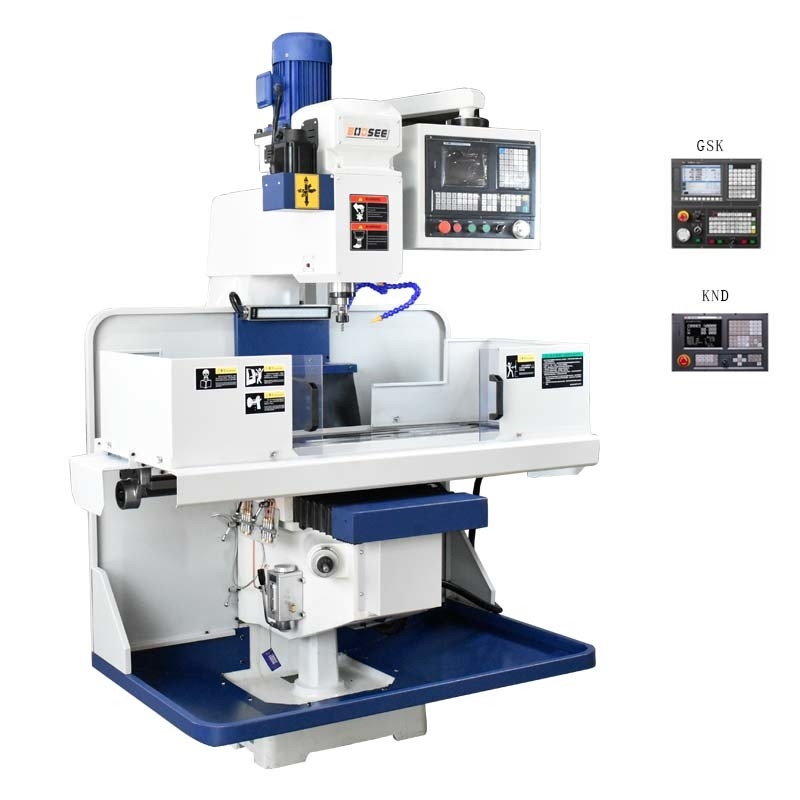

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine
R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine

Large Image :  R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine

Description
Taper Of Spindle Hole: R8(NT30) X Axis Travel: 830mm
Y Axis Travel: 340(360)mm Z Axis Travel: 360+120 Mm
Spindle Diameter: Φ85.725mm Cutting Rapid Feed: 1~4000mm/min
Triaxial Feed Motor Torque: 6/6/4Nm Dimension Of Machine Tool: 1500x1820x2380 Mm
High Light:

VMC Vertical CNC Machine

,

R8 Spindle Vertical CNC Machine

,

Hard Guide Way VMC Milling Machine

1370*280mm Work Table Hard Guide Way Vertical Cnc Milling Machine VMC

Product Features:



1. The machine bed, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron. The compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping characteristic performance of the foundation parts.

2. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools;



3. X. Y. Z axis feed adopt high-precision grinding ball screw and the feeding speed is stable. The drive motor is connected with the screw through an elastic coupling and a synchronous belt. The feed servo motor directly transmits the power to the high-precision ball screw without back clearance to ensure machine and positioning accuracy synchronization of the machine tool.



4. The bed body and internal steel mesh reinforcement ensures the rigidity and accuracy during strong cutting. The basic parts are molded with resin sand and subject to aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.





Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg

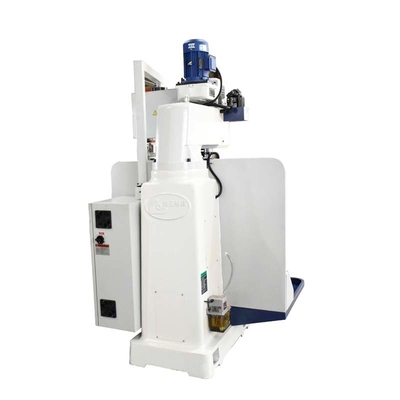

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine 0



Product description:

The product is a vertical CNC milling machine with X, Y and Z axis servo control.

The rectangular guideway has large load, high rigidity and compacted in design.

It is suitable for the production of multiple varieties, small and medium-sized batch of products, and can meet the processing of complex, high-precision parts in batches.





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine 1

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine 2

R8 Spindle Vertical CNC Machine Hard Guide Way VMC Milling Machine 3
