Product Details
Place of Origin: Shenzhen China
Brand Name: Lishang Precision Machinery
Certification: CE ISO
Model Number: LS-6136
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: durable case
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/month
Name: |
Precision CNC Machining Center |
X Axis: |
450mm |
Z Axis: |
400mm |
Spindle Speed: |
6000Min |
Spindle Through Hole Diameter: |
φ46mm |
Main Motor: |
XKC7530A/C:5.5/7.5KW |
Mass Of Machine: |
2040X1430X1754 |
Overall Dimension: |
Mitsubishi/FANUC |
Name: |
Precision CNC Machining Center |
X Axis: |
450mm |
Z Axis: |
400mm |
Spindle Speed: |
6000Min |
Spindle Through Hole Diameter: |
φ46mm |
Main Motor: |
XKC7530A/C:5.5/7.5KW |
Mass Of Machine: |
2040X1430X1754 |
Overall Dimension: |
Mitsubishi/FANUC |

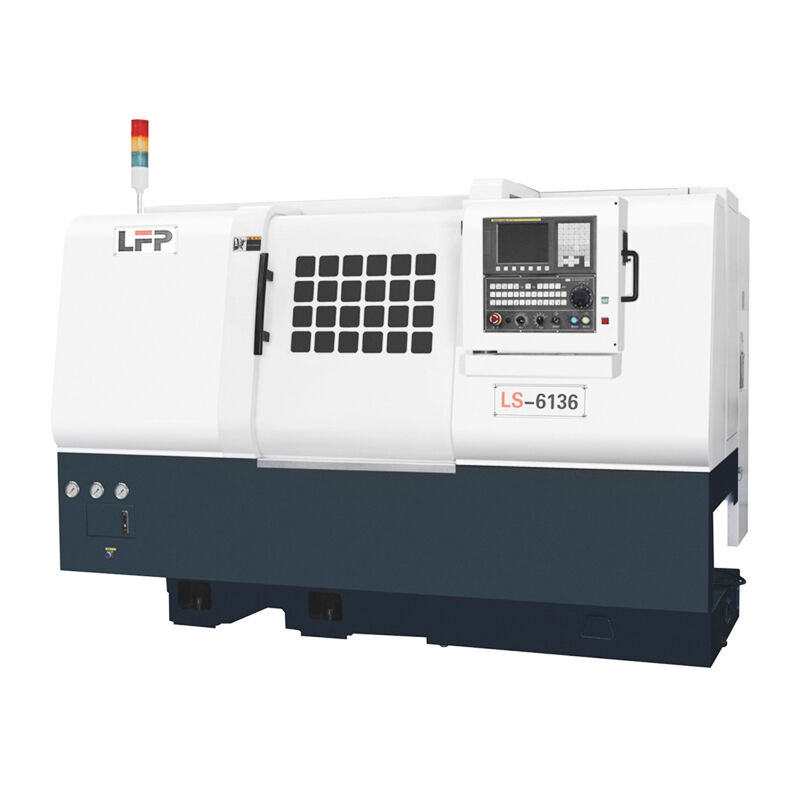

LS-6136/6136D45℃ inclined fully automatic precision CNC lathe, turning and milling combine machining center
LS-6136 is a high-end CNC equipment designed for high-precision and high-efficiency metal processing. The 6136 series machine tools adopt a 45-degree inclined bed structure, combined with a high-rigidity casting process and a precision drive system. It is widely used in batch automated processing of shafts, discs and other parts, and can meet the strict requirements of aerospace, automotive parts, precision instruments and other industries for processing accuracy and production efficiency.
Key words : CNC/LS-6136/Machining Center/Horizontal machining center/Lishang Precision Machining
Product Specification
|
Capacity
|
Maximum rotation diameter on the bed | φ400mm |
| wing over cross slide | 160mm | |
| Max turning diameter | 300mm | |
| Max.turning length | 200mm | |
| Spindle | Spindle speed | XKC7530A/C:60~6000rpm |
| Spindle through hole diameter | φ46mm | |
| Max.diameter of bars | φ45mm(Chuck/Chuck)/φ35mm(Collet/Collt) | |
| Main motor | XKC7530A/C:5.5/7.5KW | |
| Turret | Number of stations | 8 |
| Tool size | 20×20/φ25mm | |
| Tail stock | tailstock dia | 7 0 m m |
| tails tock quill travel | 80mm | |
| Axes | center taper | Morse NO.4 high precision rotary top |
| X Travel X | 450mm | |
| Z Travel Z | 400mm | |
| (X/Z) Rapid feed X/Z | 18m/min | |
| (X/Z)Feed motors |
Servo1.2Kw
|
|
| Others | Hollow hydraulic chuck | 6" |
| Rotating hydraulic cylinder | 6" | |
| Required electric power | 12KVA | |
| Overall dimension | 2040X1430X1754 | |
| Mass of machine | ( About ) 3 2 0 0 K g |
Application
Sales service
* Instructions for use: Online operating instructions and usage videos are available, and on-site training requires additional fees
* Online guidance: Professional engineers provide online technical guidance to quickly solve customer problems
* Provide 1-year warranty and lifetime technical support services
