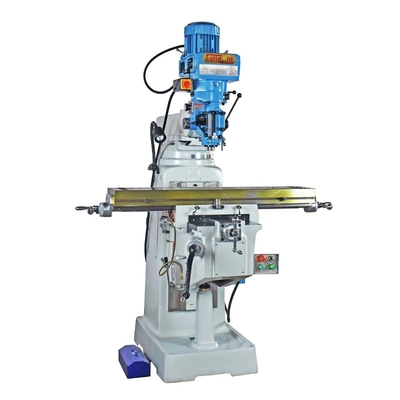

Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel

Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel
Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel

Large Image :  Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel

Product Details:
Place of Origin: Taiwan
Model Number: WC-WL4BS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotation
Payment Terms: T/T, Western Union
Supply Ability: 30set/month

Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel

Description
Spindle Speed: 75~4630(16 Speed) R.P.M Table Load(Max.): 300kg
Overam Travel: 430mm Machine Size(LxWxH): 1750*1700*2100mm
High Light:

Industrial Turret Milling Machine

,

127mm Spindle Z Axis Turret Mill

,

380V Turret Milling Machine

350mm Z Axis Manual Travel 127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine





The spindle is made of chrome-molybdenum steel, after heat treatment and precision grinding, it is rigid and tough, and can withstand heavy cutting.

The spindle gearbox adopts patented design, with small energy loss and strong horsepower.





Item No. WC-WL4BS
Spindle speed R.P.M 75~4630(16)
Spindle taper   R8 or NT30 or NT40
Head tilt(right-left)   45 degree
Table length x table width mm 1270*254
Table load(Max.) kg 300
X-axis manual travel mm 760
Y-axis manual travel mm 350
Z-axis manual travel mm 350
Spindle nose to Table mm 75-460
Overam trave mm 430
Spindle Z-axis manual travel mm 127
Quill feed feeds mm/rev 0.04/0.08/0.15
Machine size(LxWxH) mm 1750*1700*2100
X.Y.Z.Guiding tracks mm ▲ ■ ▲
Net weight (approx.) kg 1050





Standard Configuration:



Drive screw (Taiwan)

Electrical Box

Powerful end mill head 16-segment speed change (A type belt vertical steel head)

Spindle tie rod

Spindle motor 380V-50HZ-3PH-2P/4P

Abrasion resistant plate (X,Y Axis)

Manual lubrication system

Heat treatment grinding (X,Y Axis)

Working lamp

Toolbox





Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel 0



Company Information:



ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel 1

Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel 2

Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel 3



If you are interested in any items, please feel free to contact us. Thank you!
