Product Details:
|
| Spindle Speed Range: | 20-8000rpm/min | Feed Axis Motor Power: | 1.8/1.8/2.5KW |
|---|---|---|---|
| Taper Of Spindle Hole: | BT40 | Tool Changer: | Carousel Tool Changer / Side-mount Tool Changer |
| High Light: | 8000rpm/min Vertical Milling Center,Automated Vertical Milling Center,2.5KW Cnc Machining Center |
||
3 Axis Cnc Machining Center High Speed Machining Center Vertical Milling Center Machine Automated Cnc Machine
1. Cnc machine center It can process parts that need to be processed in multiple processes after one-time clamping and positioning;
2. CNC milling machines generally do not need to use special process equipment such as special fixtures.
3. VMC Machine can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. Vmc CNC milling machine is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.
Product description:
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.
Product Specification:

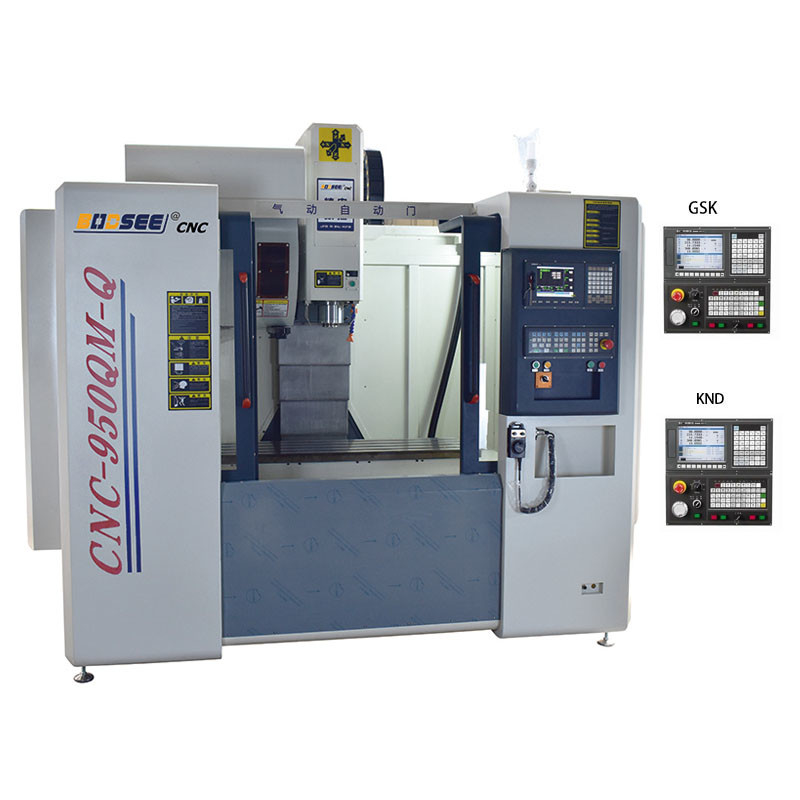

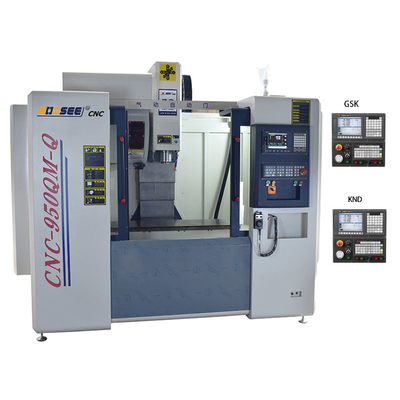

| Model No. | CNC-950QM-Q | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5/7.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer / Side-mount tool changer |
|
| Tool Capacity | 12-24pieces | |
| Dimension of machine tool | 2800x2200x2300mm | |
| Weight of machine | 3150KG | |
| Shield opening mode |
Pneumatic automatic door |
|
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece samples:
Our Exhibition:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
