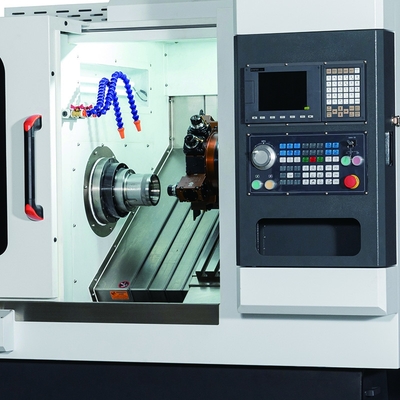

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic

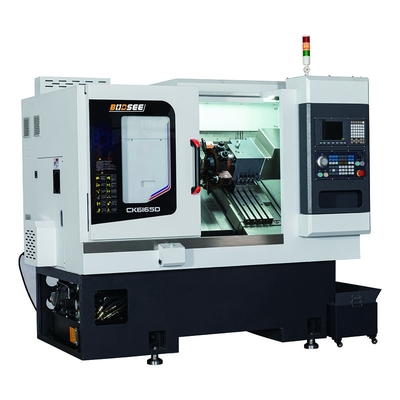

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic
Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic

Large Image :  Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: BDS-65D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets per month

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic

Description
Diameter Of Spindle Bore: 79mm Maximum Admissible Bar Stock Diameter: 65mm
Max.Processing Length: 280mm Bed Structure: 35°
Repeat Positioning Accuracy: 0.003mm Minimum Adjustable Unit: 0.001mm

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe Machine For Turning Automatic


1. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission

2. The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency

3. Fully enclosed protective cover.



Description of lathe machine:

Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe machine for turning automatic 0





The specification of cnc lathe machine:



Model No. BDS-65D
Diameter of spindle bore 79mm
Maximum admissible bar stock diameter 65mm
Swing over bed 400mm
Tool table plate and spindle center height 130mm
Max.Processing Length 280mm
Bed structure 35°
Specification of spindle end A2-6/A2-8
Max. Spindle speed 3000r/min
X axis travel 960mm
Z axis travel 380mm
Y axis travel
X, Z lead screw R32/C3mm
X, Z guide rail 30Pmm
G0 Speed 24m/min
Spindle runout 0.003mm
Repeat positioning accuracy 0.003mm
Minimum adjustable unit 0.001mm
Machining accuracy IT6mm
Power head specification ER25
Power head speed 3000r/min
Turret Specification 63-820/80-820/BMT40-12
Clamping Type Hydraulic collet/
Hydraulic chuck
Machine weight 2750KG
Machine size 2250*1500*2050mm



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 1

Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 2

Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 3





FAQ:

1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. What's the main products of your company?
We specialized in many kinds of CNC machines, CNC Lathe machines, Vertical VMC Milling Machine.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines, cnc lathe machine.
4. Is your company a factory or trading company ?

We are factory and located in Zhangzhou City, Fujian Province, China.

5. What's the MOQ?

A: 1 set .

6. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
