Product Details:
|
| Swing Over Bed: | 400mm | Max.Processing Length: | 280mm |
|---|---|---|---|
| Bed Structure: | 35° | X Axis Travel: | 960mm |
| Z Axis Travel: | 380mm | G0 Speed: | 24m/min |
The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.
The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

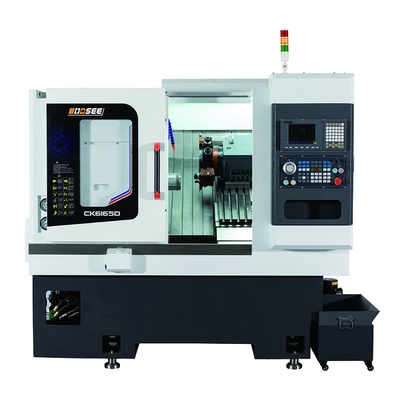

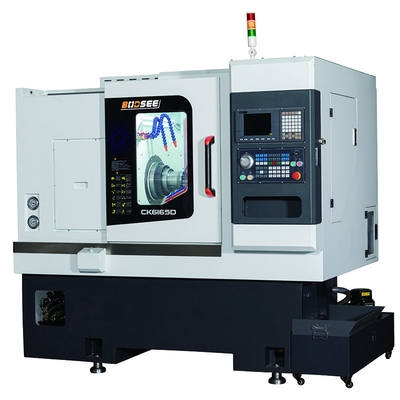

Description of lathe machine:
Integral slant bed design
linear guideway, super high rigidity
Adopt modularization design, easy for various especial configuration choice, such as tool setter, parts catcher etc.
The specification of cnc lathe machine:
| Model No. | BDS-46D |
| Diameter of spindle bore | 56mm |
| Maximum admissible bar stock diameter | 46mm |
| Swing over bed | 400mm |
| Tool table plate and spindle center height | 63mm |
| Max.Processing Length | 280mm |
| Bed structure | 35° |
| Specification of spindle end | A2-5 |
| Max. Spindle speed | 4000r/min |
| X axis travel | 960mm |
| Z axis travel | 380mm |
| Y axis travel | |
| X, Z lead screw | R32/C3mm |
| X, Z guide rail | 30Pmm |
| G0 Speed | 24m/min |
| Spindle runout | 0.003mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum adjustable unit | 0.001mm |
| Machining accuracy | IT6mm |
| Power head specification | ER25 |
| Power head speed | 3000r/min |
| Turret Specification | 63-820/80-820/BMT40-12 |
| Clamping Type | Hydraulic collet/ Hydraulic chuck |
| Machine weight | 2700KG |
| Machine size | 2250*1500*2050mm |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
FAQ:
We are factory and located in Zhangzhou City, Fujian Province, China.
5. What's the MOQ?
A: 1 set .
6. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
