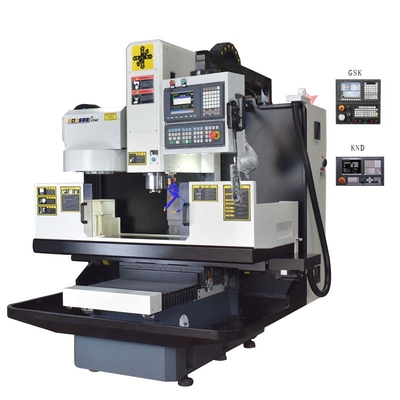

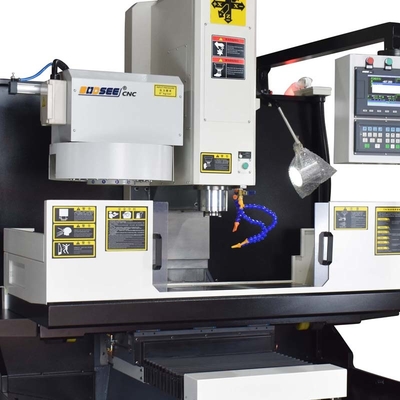

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine
large.img.alt
400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine

Large Image :  400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine

Description
Y Rapid Feed: 36m/min The Number Of The Slider In The X Axis: 6 Pieces
Triaxial Screw Size: 40/12mm Positioning Accuracy: 0.01mm
Spindle Speed Range: 20-8000rpm/min Taper Of Spindle Hole: BT40
High Light:

BT40 Spindle High Precision CNC Machine

,

400kg High Precision CNC Machine

,

BT40 Spindle 4 Axis Milling Machine

4 Axis Machining Center High Precision CNC 4 Axis Milling Machine BT40 Spindle 400kg Max Load



Product Description:

CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.



Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 0





Product Features:

1. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.

2. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.

3. Heat exchanger for electrical cabinet.

4. The long span Y type column design leads high rigidity and high stability.

5. X, Y, Z rails adopt stainless steel telescopic cover.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 1

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 2





Workpiece sample:

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 3

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 4





Our Exhibition:

400kg Max Load High Precision CNC Machine BT40 Spindle 4 Axis Milling Machine 5





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
