CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy

Certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
I'm Online Chat Now

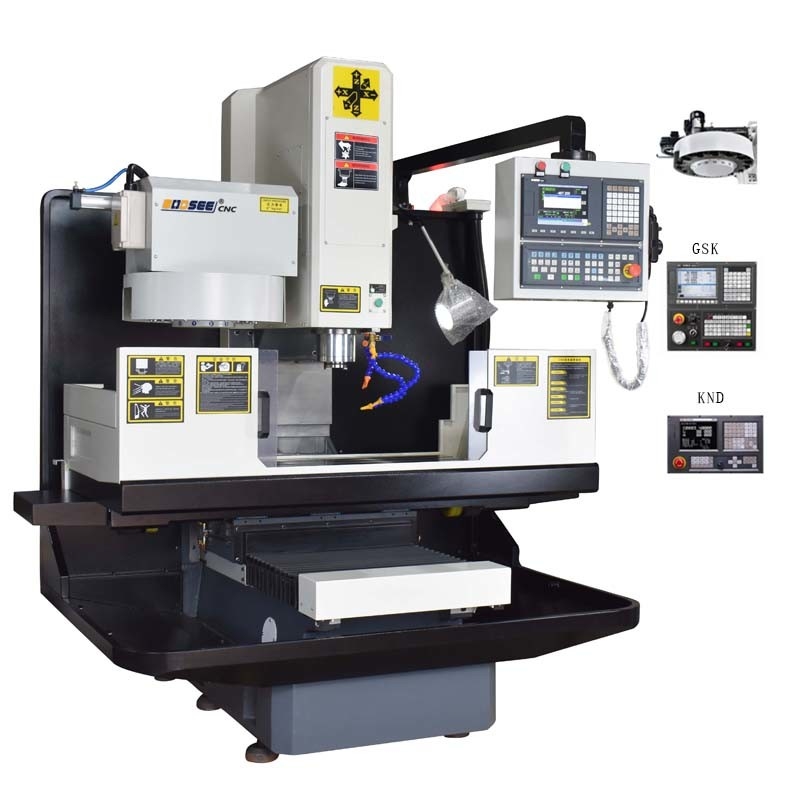

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy
CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy

Large Image :  CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy

Description
The Number Of Grooves: 4pieces Positioning Accuracy: 0.01mm
Triaxial Screw Size: 40/12mm Z Rapid Feed: 24m/min
Distance From Spindle Nose To The Work Table: 120-620mm Weight Of Machine: 2250KG
High Light:

0.01mm VMC Milling Machine

,

CNC VMC Milling Machine

,

High Precision Vertical Milling Center

12pieces Tool Capacity CNC Vertical Milling Machine 0.01mm Positioning Accuracy VMC Milling Machine



Product Description:

CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. It can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.





Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG

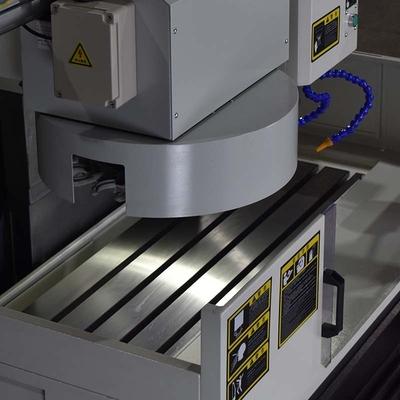

Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy 0





Product Features:

1. Centralized automatic lubrication system.

2. Leveling blocks & bolts.

3. The long span Y type column design leads high rigidity and high stability.

4. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy 1

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy 2





Workpiece sample:

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy 3





Our Exhibition:

CNC Vertical VMC Milling Machine Center High Precision 0.01mm Positioning Accuracy 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
