|The Maximum Load Capacity:||400KG||Feed Axis Motor Power:||1.8/1.8/2.5KW|
|Tool Changer:||Carousel Tool Changer||Tool Capacity:||12/24pieces|
|Weight Of Machine:||2450KG||The Number Of The Slider In The Z Axis:||4 Pieces|

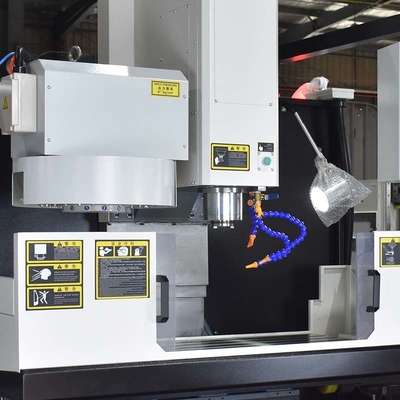

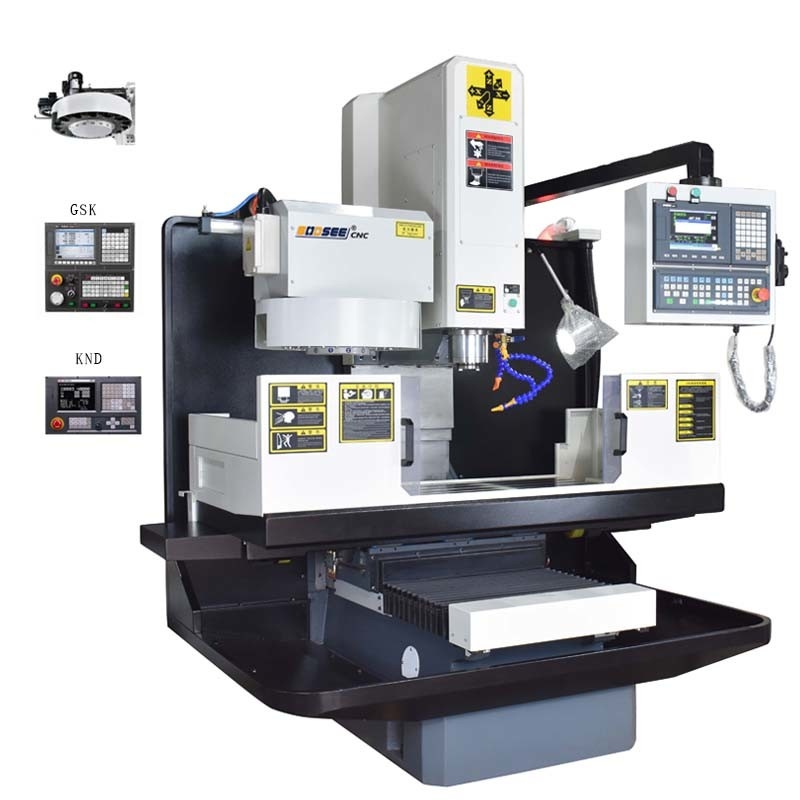

3 Axis CNC Vertical Milling Machine,
400Kg CNC Vertical Milling Machine,
Industrial 400Kg CNC Vertical Milling Machine
1. High speed, high precision, good surface finishing
2. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.
3. Low noise, low vibration and low heat.
4. The overall framework is made of high toughness and high grade casting iron.
5. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.
|X axis travel||1200mm|
|Y axis travel||500mm|
|Z axis travel||500mm|
|Distance from spindle nose to the work table||120-620mm|
|Distance from spindle center to column guideway||580mm|
|X rapid feed||36m/min|
|Y rapid feed||36m/min|
|Z rapid feed||24m/min|
|Cutting rapid feed||8000mm/min|
|The width of the triaxial linear guide||35mm|
|The number of the slider in the X axis||6 pieces|
|The number of the slider in the Y axis||4 pieces|
|The number of the slider in the Z axis||4 pieces|
|Triaxial screw size||40/12mm|
|Work table size||1800x420mm|
|The maximum load capacity||400KG|
|Table "T" type groove||The number of grooves||4pieces|
|Repeat positioning accuracy||0.008mm|
|Spindle speed range||20-8000rpm/min|
|Feed axis motor power||1.8/1.8/2.5KW|
|Feed motor connection form||Direct Connection|
|Taper of spindle hole||BT40|
|The spindle of output power||5.5/7.5KW|
|Cooling box form||Independent|
|Tool Changer||Carousel tool changer|
|Dimension of machine tool||2250*1700*2300mm|
|Weight of machine||2450KG|
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
1 set .
5. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
