Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine
Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine

Large Image :  Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine

Description
Repeat Positioning Accuracy: 0.008mm Tool Changer: Carousel Tool Changer / Side-mount Tool Changer
The Maximum Load Capacity: 400KG The Number Of The Slider In The X Axis: 6 Pieces
Cutting Rapid Feed: 8000mm/min Triaxial Screw Size: 40/12mm
High Light:

Industrial Vertical CNC Machine

,

3 Axis Vertical CNC Machine

,

BT40 Spindle Automatic CNC Milling Machine

3 Axis Vertical CNC Machine Industrial CNC Milling Machine Automatic BT40 Spindle



Product Description:

The CNC-950QM CNC machines is an automated machine that is suitable for efficient machining of complex parts, it is a numerical control machine with superior cost performance and equipped with a numerical control system. The machine is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.



Product Specification:

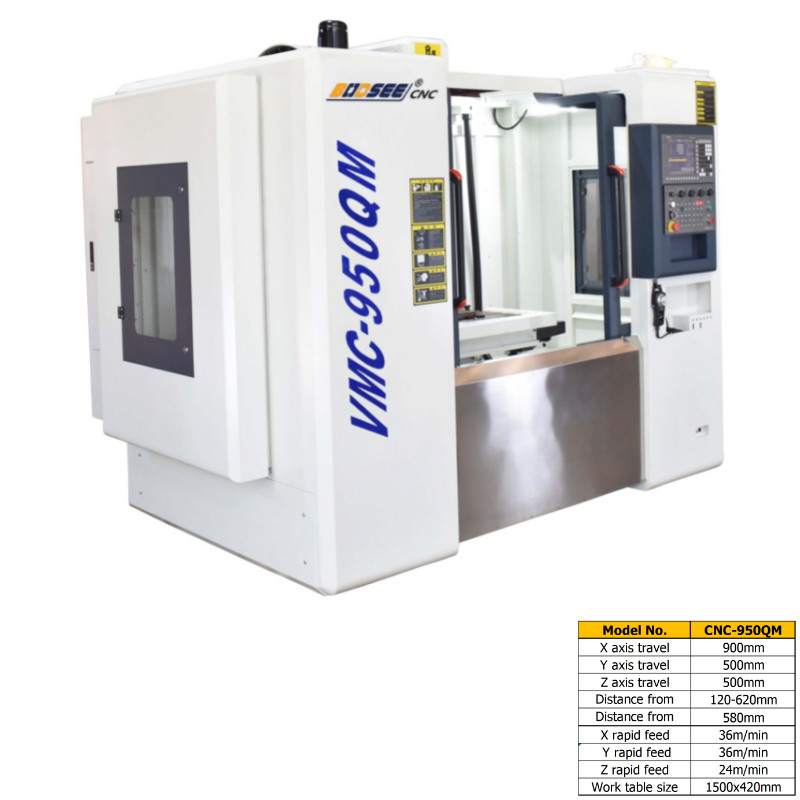

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG



Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 0

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 1





Product Features:

1. Optimal configuration: imported/domestic major outsourcing parts and components including the CNC system, spindle unit, tools magazine, ball screw, bearings, etc.

2. X, Y, Z rails adopt stainless steel telescopic cover;

3. Taiwan ATC, umbrella type or disc type are available;

4. Large travel: larger travels in all three directions than those of the same specifications in the market.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 2

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 3





Workpiece Sample:

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 4





Our Exhibition:

Industrial 3 Axis Vertical CNC Machine BT40 Spindle Automatic CNC Milling Machine 5





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
