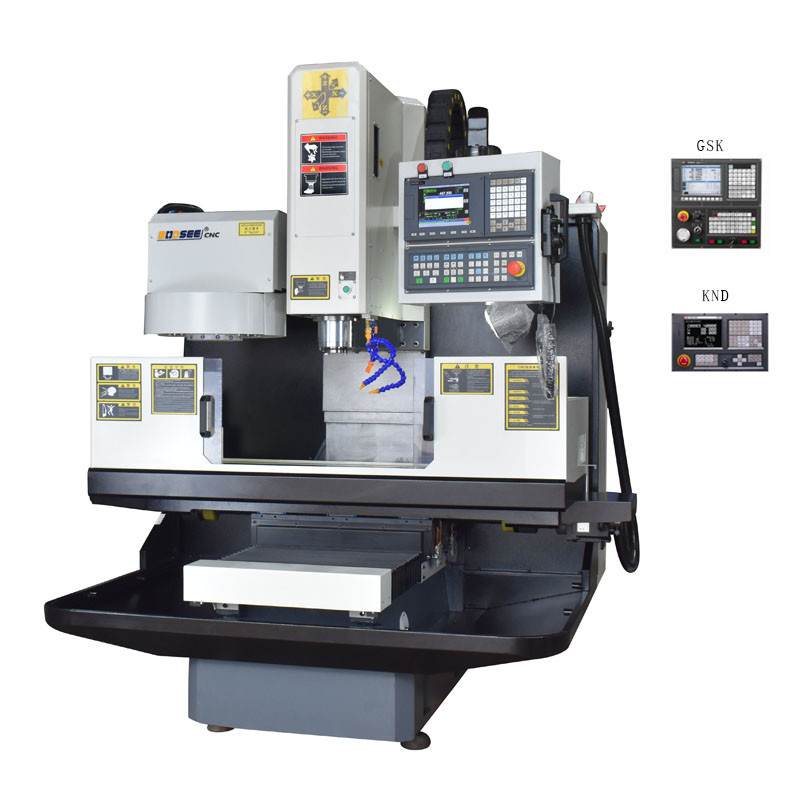

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy

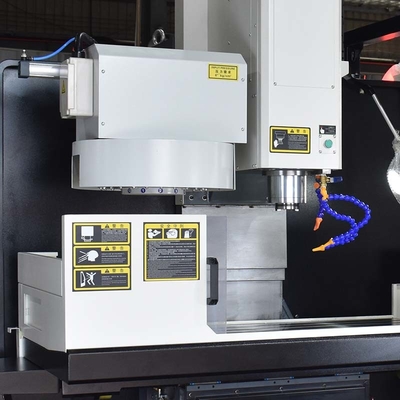

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy
Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy
Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy

Large Image :  Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy

Description
X Axis Travel: 900mm Cutting Rapid Feed: 8000mm/min
The Number Of The Slider In The Y Axis: 4 Pieces The Maximum Load Capacity: 400KG
Feed Axis Motor Power: 1.8/1.8/2.5KW The Spindle Of Output Power: 5.5KW
High Light:

3 Axis Precision CNC Milling Machine

,

Compact Precision CNC Milling Machine

,

3 Axis Compact CNC Milling Machine

0.01mm Positioning Accuracy CNC Machining Center 3 Axis Precision CNC Machining Center



Product Description:

CNC-950GM CNC Vertical Machining Centeis suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity.

1. High rigidity and great ability of shock absorption.

2. It adopts special casting process to improve the mechanical properties of materials.

3. High-speed/high precision

4. Large travel: larger travels in all three directions than those of the same specifications in the market.





Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG



Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy 1

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy 2





Workpiece Samples:

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy 3







Our Exhibition:

Compact 3 Axis Precision CNC Milling Machine 0.01mm Positioning Accuracy 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.

5. OEM Service

We accept purchase orders with customers' brand or trade mark.
