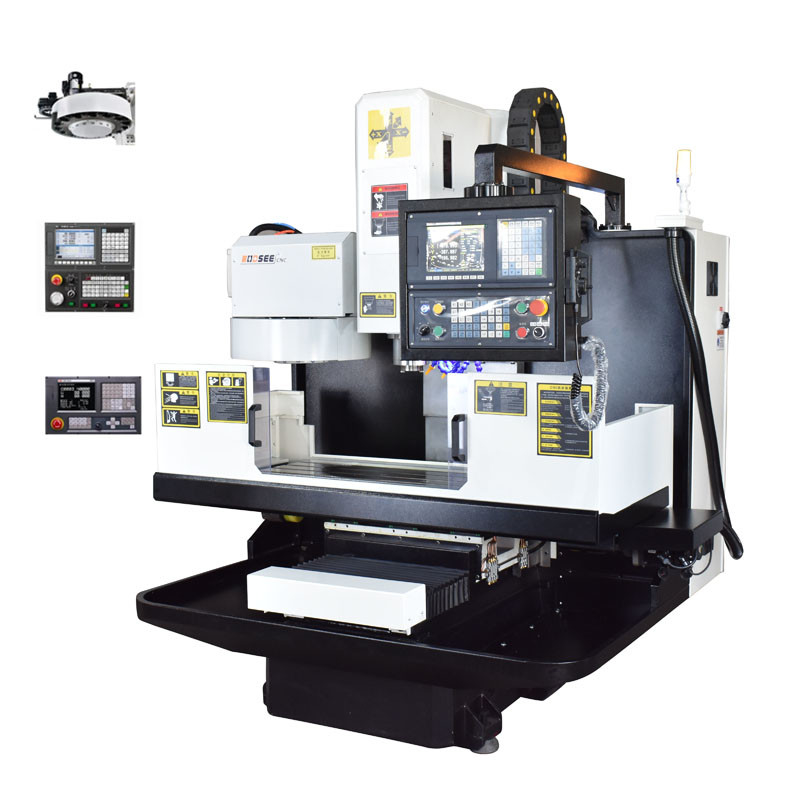

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing
Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing

Large Image :  Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing

Description
Max Tool Diameter (Full): Ф75mm The Spacing Of Grooves: 90mm
Z Axis Feed Motor Rated Output Torque: 10Nm X/Y Axis Feed Motor Rated Power: 1.6/2.0kw
Feed Motor Connection Form: Direct Connection
High Light:

Processing Precision CNC Machining Center

,

Heavy Cutting Precision CNC Machining Center

,

High Rigidity Cutting CNC Machine

High Rigidity Heavy Cutting Precision CNC Machining Center For Metal Processing



Product Description:

CNC-940GM is a numerical control machine with superior cost performance and equipped with a numerical control system.

It is suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity.





Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed

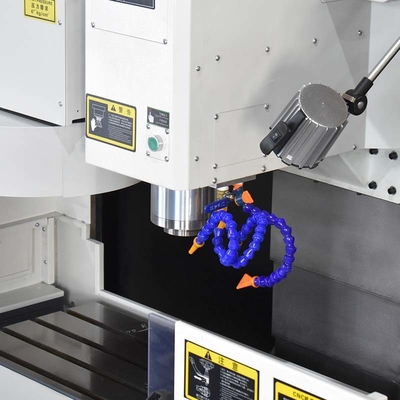

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing 0





Product Features:

1.High strength and good wear resistance

2. BT40 spindle

3. 20-8000rpm/min Spindle speed range

4. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC

5. Automatic intermittent lubrication



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing 1

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing 2



Workpiece Sample:

Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing 3





Heavy Cutting Precision CNC Machining Center High Rigidity For Metal Processing 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3. Where is our factory located? How can I visit there?

Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.

What is your lead time?

It depends on customers’ requirement and quantity.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
