|Item:||CNC-M4S 3 Axis VMC Machine||Z Axis Travel:||360+120 Mm|
|Repeat Positioning Accuracy:||0.015mm||Triaxial Feed Motor Torque:||6/6/4Nm|
|Weight Of Machine:||1700kg|
High Rigidity 3 Axis CNC Milling Machine,
3 Axis CNC Milling Machine Heavy Cutting,
Vertical 3 Axis CNC Machining

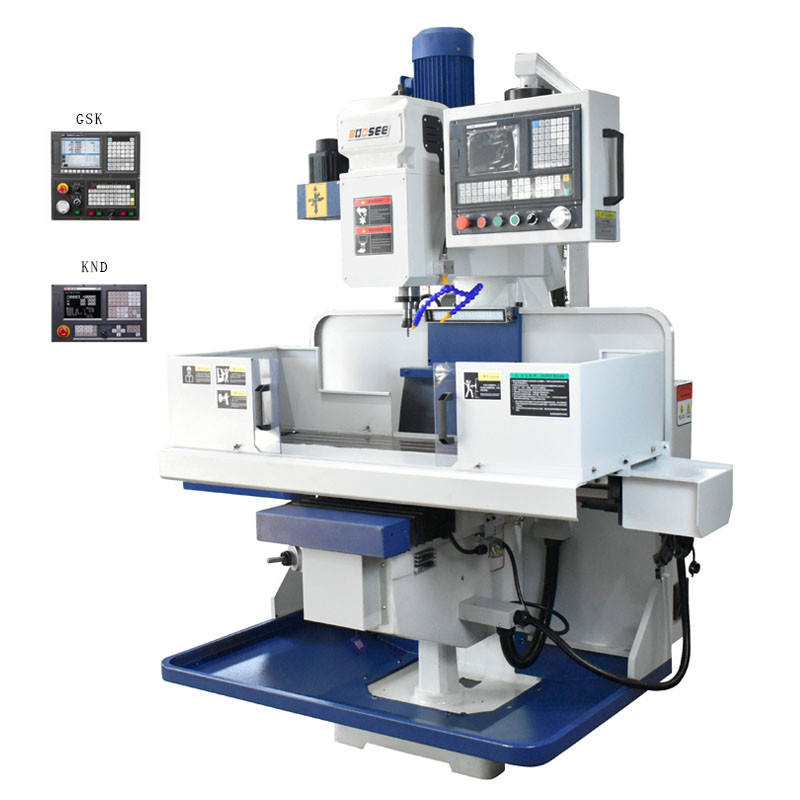

High Rigidity Heavy Cutting Vertical Machining Center 3 Axis CNC Milling Machine
1. High strength resin sand casting
2. It can install 4th axis and install 5th axis
3. High strength and good wear resistance
4. X, Y, Z three-axis have large travel, especially suitable for the parts machining.
|X axis travel||830mm|
|Y axis travel||340(360)mm|
|Z axis travel||360+120 mm|
|Distance from spindle nose to the work table||120+360mm|
|Distance from spindle center to column guideway||370mm|
|X rapid feed||8 m/min|
|Y rapid feed||8 m/min|
|Z rapid feed||6 m/min|
|Cutting rapid feed||1~4000mm/min|
|Triaxial screw size||X||3208|
|Work table size||1370*280mm|
|The maximum load capacity||350KG|
|Table "T" type groove||The number of grooves||3pieces|
|Repeat positioning accuracy||0.015mm|
|Spindle speed range||80-4500r/min|
|Spindle Motor Power(kW)||3kw|
|Triaxial Feed Motor Torque||6/6/4Nm|
|Taper of spindle hole||R8(NT30)|
|Power Form (Voltage)||Customized|
|Water tank capacity||40L|
|Cooling box form||Integrated|
|Dimension of machine tool||1500/1820/2380mm|
|Weight of machine||1700kg|
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
CNC VMC is composed of mechanical equipment and numerical control system., it is an automated machine that is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling, drilling, tapping, boring, etc.
How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.
What's your main products of your company?
A: We specialized in CNC Milling Machine, VMC Machine.
Where is our factory located? How can I visit there?
A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.
What's the MOQ?
A: 1 set.
