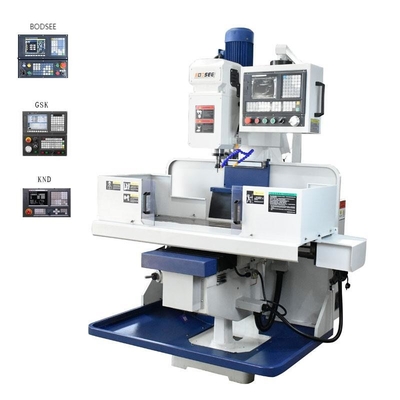

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center
large.img.alt
350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center

Large Image :  350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center

Description
Item No.: CNC-M4S CNC Machine X Rapid Feed: 8 M/min
X Axis Travel: 830mm Cooling Motor: 0.15kw
Water Tank Capacity: 40L
High Light:

350KG VMC Milling Machine

,

830mm VMC Milling Machine

,

CNC VMC Machining Center

350KG Max Load 830mm X Axis VMC Milling Machine CNC



Product Features:

1. Great ability of shock absorption.

2. X, Y, Z three-axis have large travel, especially suitable for the parts machining.

3. High strength resin sand casting

4. Precision casting, precision machining, precision assembly



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 0





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 1

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 2



Product Description:

CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.

It can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.





Workpiece Samples:

350KG Max Load VMC Milling Machine 830mm X Axis CNC Machining Center 3



FAQ:

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.



What's your main products of your company?

A: We specialized in CNC Milling Machine, VMC Machine.



Where is our factory located? How can I visit there?

A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.



What is your lead time?

It depends on customers’ requirement and quantity.
