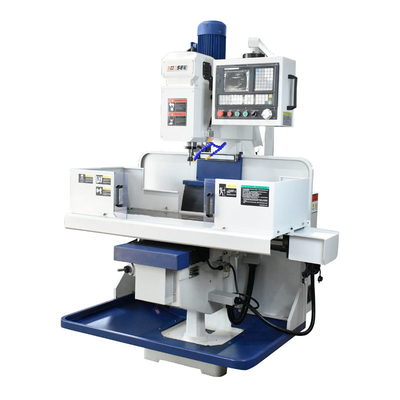

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine
large.img.alt
Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine

Large Image :  Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine

Description
Item No.: CNC-M4S VMC Machine The Maximum Load Capacity: 350KG
Spindle Speed Range: 80-4500r/min Taper Of Spindle Hole: R8(NT30)
Weight Of Machine: 1700kg
High Light:

Heavy Cutting VMC Milling Machine

,

Work Table VMC Milling Machine

,

VMC Automatic CNC Machine

Fully Automatic Cnc Machine Heavy Cutting VMC Milling Machine 1370*280mm Work Table



Product Features:

1. High rigidity

2. Great ability of shock absorption.

2. Made of high-density, high rigidity material, high strength and good wear resistance

3. X, Y, Z three-axis have large travel, especially suitable for the parts machining.

4. Precision casting, precision machining, precision assembly



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine 0





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine 1

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine 2



Product Description:

CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.

It can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.





Workpiece Samples:

Heavy Cutting VMC Milling Machine 1370*280mm Work Table Automatic CNC Machine 3



FAQ:

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.



What's your main products of your company?

A: We specialized in CNC Milling Machine, VMC Machine.



Are you a manufacturer or a trader?

A: We are the manufacturer for CNC Vertical Milling Machines.



What is your lead time?

It depends on customers’ requirement and quantity.
