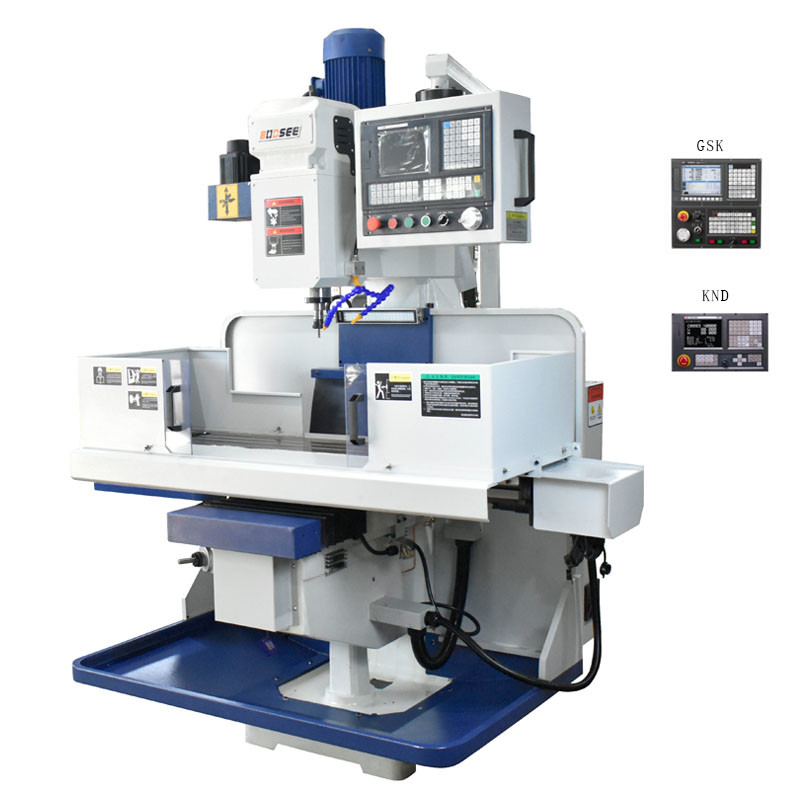

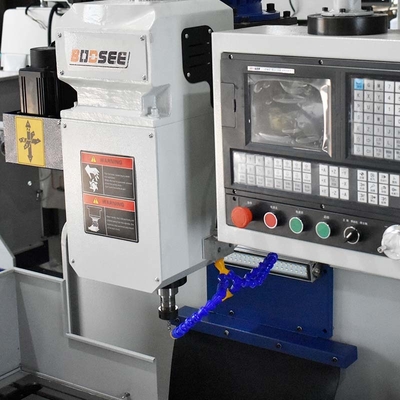

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load
large.img.alt
R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load

Large Image :  R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load

Description
Positioning Accuracy: 0.025/300mm Spindle Speed Range: 80-4500r/min
Spindle Diameter: Φ85.725mm Taper Of Spindle Hole: R8(NT30)
Electric Capacity: 7KVA Cooling Box Form: Integrated
Dimension Of Machine Tool: 1500x1820x2380 Mm
High Light:

350KG Industrial Milling Machine

,

R8 Spindle Industrial Milling Machine

,

R8 Spindle Industrial CNC Machine

1370*280mm Work Table CNC Vertical Milling Machine 350KG Max Load Capacity



Product Features:

1. High strength resin sand casting

2. R8 spindle

3. 3 axis

4. It can install 4th axis and install 5th axis

5. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load 0





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load 1

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load 2



Workpiece Sample:

R8(NT30) Spindle CNC Industrial Milling Machine 350KG Max Load 3



FAQ:

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.



What's your main products of your company?

A: We specialized in CNC Milling Machine ,Vertical Machining Center.



Are you a manufacturer or a trader?

A: We are the manufacturer for CNC Vertical Milling Machines.



What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
