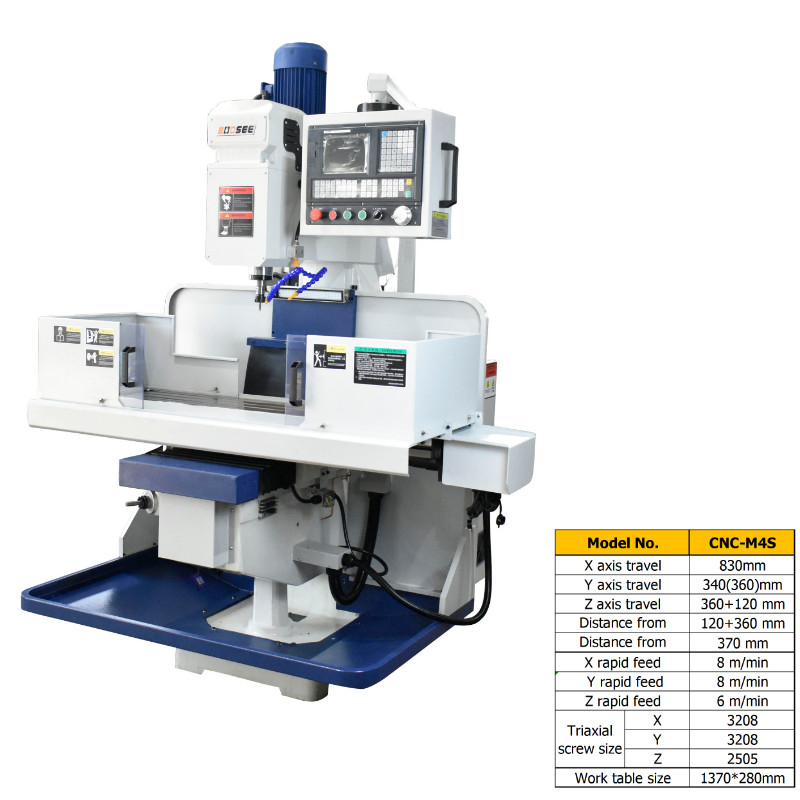

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed
large.img.alt
High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Large Image :  High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Description
X Rapid Feed: 8 M/min Cutting Rapid Feed: 1~4000mm/min
The Number Of Grooves: 3pcs Spindle Speed Range: 80-4500r/min
Cooling Motor: 0.15kw Power Form (Voltage): Customized
Cooling Box Form: Integrated
High Light:

High Rigidity Vertical CNC Milling Machine

,

4000mm/Min Vertical CNC Milling Machine

High Rigidity 1~4000mm/Min Cutting Rapid Feed CNC Vertical Milling Machine



Product Features:

1. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable.

2. High speed, high precision, good surface finishing

3. Precision casting, precision machining, precision assembly

4. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools.



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 0





Product description:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling, drilling, tapping, boring, etc.





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 1

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 2





Workpiece Sample:

High Rigidity Vertical CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 3
