Product Details:
|
| Distance From Spindle Center To Column Guideway: | 370 Mm | X Rapid Feed: | 8 M/min |
|---|---|---|---|
| The Maximum Load Capacity: | 350KG | Repeat Positioning Accuracy: | 0.015mm |
| Spindle Speed Range: | 80-4500r/min | Spindle Diameter: | Φ85.725mm |
| Triaxial Feed Motor Torque: | 6/6/4Nm | Water Tank Capacity: | 40L |
| High Light: | Fully Automatic CNC Vertical Milling Machine,CNC Vertical Milling Machine 830mm,Vertical Three Axis CNC Milling Machine |
||

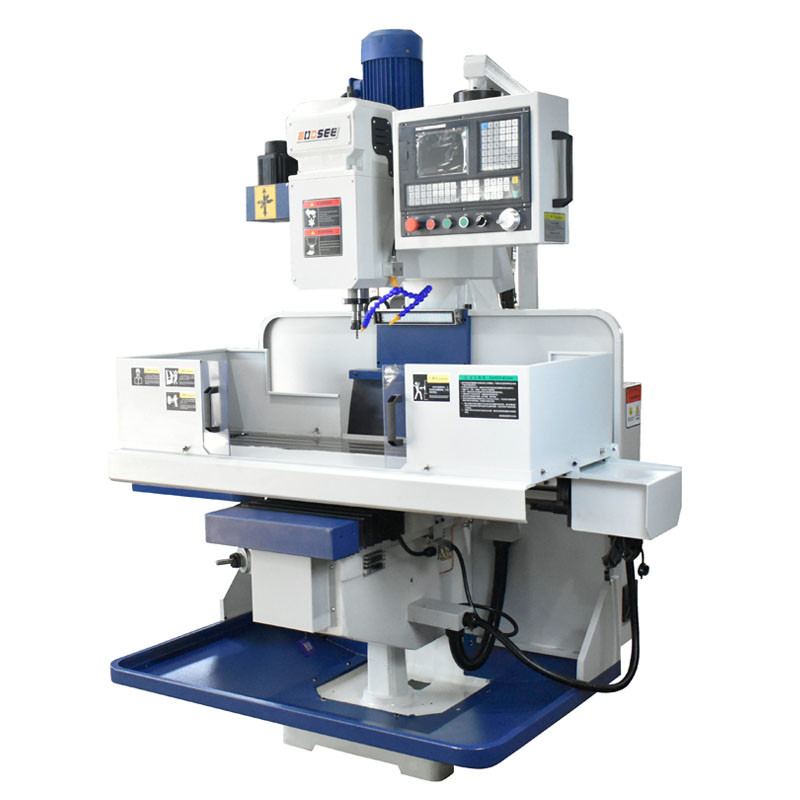

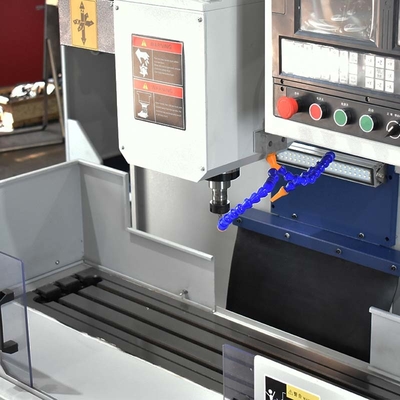

Three Axis 1370*280mm Work Table CNC Vertical Milling Machine Fully Automatic
Product Features:
1. The machine external protection of the machine tool adopts semi-protective structure design, which is easy to operate, safe and reliable.
2. Adopt reliable centralized and automatic lubrication device to automatic intermittent lubrication for each lubricating point of the machine tool at fixed time and fixed quantity, and the lubrication time can be adjusted according to the working conditions.
3. The spindle motor is directly connected with the spindle by belt, but is has high efficiency and is easy to maintain.
4. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools.
Product Specification:
| Model No. | CNC-M4S | |
| X axis travel | 830mm | |
| Y axis travel | 340(360)mm | |
| Z axis travel | 360+120 mm | |
| Distance from spindle nose to the work table | 120+360mm | |
| Distance from spindle center to column guideway | 370mm | |
| X rapid feed | 8 m/min | |
| Y rapid feed | 8 m/min | |
| Z rapid feed | 6 m/min | |
| Cutting rapid feed | 1~4000mm/min | |
| Triaxial screw size | X | 3208 |
| Y | 3208 | |
| Z | 2505 | |
| Work table size | 1370*280mm | |
| The maximum load capacity | 350KG | |
| Table "T" type groove | The number of grooves | 3pieces |
| Width | 16.5mm | |
| Spacing | 63.5mm | |
| Positioning accuracy | 0.025/300mm | |
| Repeat positioning accuracy | 0.015mm | |
| Spindle speed range | 80-4500r/min | |
| Spindle Motor Power(kW) | 3kw | |
| Spindle Diameter | Φ85.725mm | |
| Cooling Motor | 0.15kw | |
| Triaxial Feed Motor Torque | 6/6/4Nm | |
| Taper of spindle hole | R8(NT30) | |
| Power Form (Voltage) | Customized | |
| Electric Capacity | 7KVA | |
| Water tank capacity | 40L | |
| Cooling box form | Integrated | |
| Dimension of machine tool | 1500/1820/2380mm | |
| Weight of machine | 1700kg | |
Product description:
CNC VMC is composed of mechanical equipment and numerical control system., the most widely used one of the CNC machine tools. This VMC is suitable for mechanical processing and mold making. It is an automated machine that is suitable for efficient machining of complex parts.
Our company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
FAQ:
1. How can I choose the most suitable machines ?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
2. What's your main products of your company?
5. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
