80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy

80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy
80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy 80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy

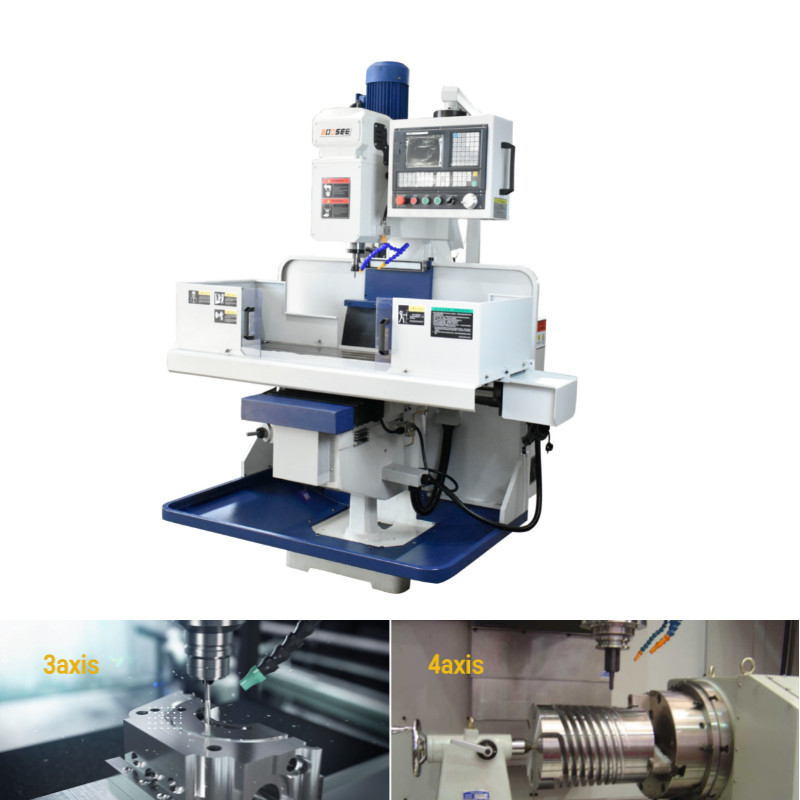

Large Image :  80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy

Description
Spindle Speed Range: 80-4500r/min Spindle Motor Power(kW): 3kw
The Maximum Load Capacity: 350KG Taper Of Spindle Hole: R8(NT30)
Spindle Diameter: Φ85.725mm Triaxial Feed Motor Torque: 6/6/4Nm
Weight Of Machine: 1700kg Dimension Of Machine Tool: 1500x1820x2380 Mm
High Light:

4500r/Min Vertical CNC Machine

,

300mm Vertical CNC Machine

80-4500r/Min Spindle Speed Range 0.025/300mm Positioning Accuracy Vertical CNC Machine



Product Features:

1. Adopt the Taiwan spindle with high precision and rigidity, with high radial and axial load capacity, and the maximum speed can reach 4500rpm.

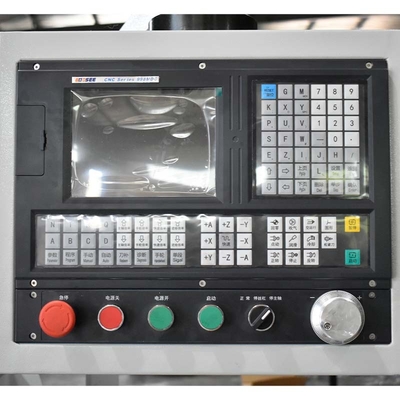

2. The operating system of machine tool adopts ergonomics human engineering principles and the operation box is independently design, which can rotate itself and easy to operate.

3. Large travel: larger travels in all three directions than those of the same specifications in the market.

4. X. Y. Z axis feed adopt high-precision grinding ball screw and the feeding speed is stable.

5. The spindle motor is directly connected with the spindle by belt, but is has high efficiency and is easy to maintain.



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg





80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy 0





Product description:

CNC VMC is composed of mechanical equipment and numerical control system, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.



Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel

80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy 1

80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy 2





Workpiece Sample:

80 - 4500r/Min Spindle Speed Vertical CNC Machine 0.025/300mm Positioning Accuracy 3







FAQ:

1. How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
