Product Details:
|
| Spindle Motor Power(kW): | 3kw | Cooling Motor: | 0.15kw |
|---|---|---|---|
| Triaxial Feed Motor Torque: | 6/6/4Nm | Power Form (Voltage): | Customized |
| Water Tank Capacity: | 40L | Cooling Box Form: | Integrated |
| Dimension Of Machine Tool: | 1500x1820x2380 Mm | Weight Of Machine: | 1700kg |
| High Light: | Hard Rail Precision CNC Machining Center,3 Axis Precision CNC Machining Center |
||

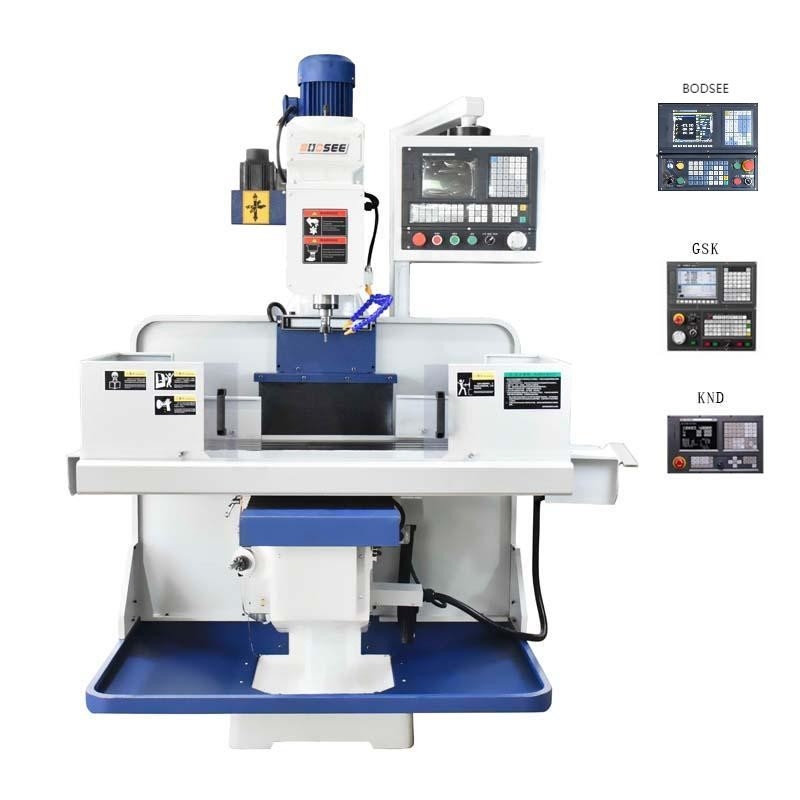

High Rigidity Heavy Cutting Hard Rail Precision CNC Machining Center 3 Axis
Product Features:
1. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools;
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. Adopt the Taiwan spindle with high precision and rigidity, with high radial and axial load capacity, and the maximum speed can reach 4500rpm.
Product Specification:
| Model No. | CNC-M4S | |
| X axis travel | 830mm | |
| Y axis travel | 340(360)mm | |
| Z axis travel | 360+120 mm | |
| Distance from spindle nose to the work table | 120+360mm | |
| Distance from spindle center to column guideway | 370mm | |
| X rapid feed | 8 m/min | |
| Y rapid feed | 8 m/min | |
| Z rapid feed | 6 m/min | |
| Cutting rapid feed | 1~4000mm/min | |
| Triaxial screw size | X | 3208 |
| Y | 3208 | |
| Z | 2505 | |
| Work table size | 1370*280mm | |
| The maximum load capacity | 350KG | |
| Table "T" type groove | The number of grooves | 3pieces |
| Width | 16.5mm | |
| Spacing | 63.5mm | |
| Positioning accuracy | 0.025/300mm | |
| Repeat positioning accuracy | 0.015mm | |
| Spindle speed range | 80-4500r/min | |
| Spindle Motor Power(kW) | 3kw | |
| Spindle Diameter | Φ85.725mm | |
| Cooling Motor | 0.15kw | |
| Triaxial Feed Motor Torque | 6/6/4Nm | |
| Taper of spindle hole | R8(NT30) | |
| Power Form (Voltage) | Customized | |
| Electric Capacity | 7KVA | |
| Water tank capacity | 40L | |
| Cooling box form | Integrated | |
| Dimension of machine tool | 1500/1820/2380mm | |
| Weight of machine | 1700kg | |
Product description:
The product is a vertical CNC milling machine with X, Y and Z axis servo control.
The rectangular guideway has large load, high rigidity and compacted in design. The main shaft is 3KW motor driven by belt, it can complete drilling, milling, boring, reaming and other processes for various complex parts such as discs, plates, shells, cams and molds etc.. It is suitable for the production of multiple varieties, small and medium-sized batch of products, and can meet the processing of complex, high-precision parts in batches. It also can be equipped with the 4th rotating axis to meet the processing requirements of special parts.
Our company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel
Workpiece Sample:
FAQ:
1. How can I choose the most suitable machines ?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
2. What's your main products of your company?
5. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
