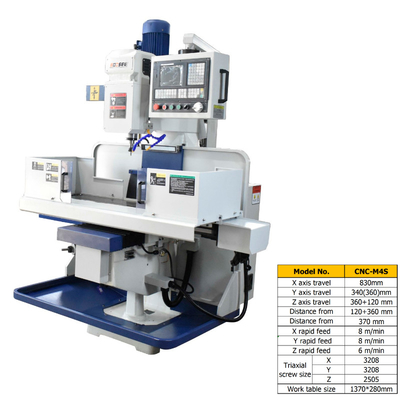

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal
large.img.alt
Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal

Large Image :  Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal

Description
Work Table Size: 1370*280mm The Maximum Load Capacity: 350KG
X Rapid Feed: 8 M/min Y Rapid Feed: 8 M/min
Z Rapid Feed: 6 M/min Cutting Rapid Feed: 1~4000mm/min
Spindle Speed Range: 80-4500r/min
High Light:

Precision CNC Machine Center

,

Wear Resistance CNC Machine Center

1370*280mm Work Table Size Precision CNC Machining Center For Metal



Product Features:

1. High speed, high precision, good surface finishing

2. Made of high-density, high rigidity material, high strength and good wear resistance

3. Precision casting, precision machining, precision assembly





Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg

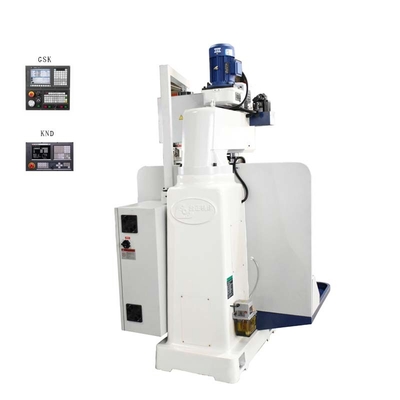

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal 0







Product description:

CNC VMC is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.



Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal 1

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal 2





Workpiece Sample:

Precision CNC Machine Center 1370*280mm Work Table Wear Resistance For Metal 3







FAQ:

1. How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
