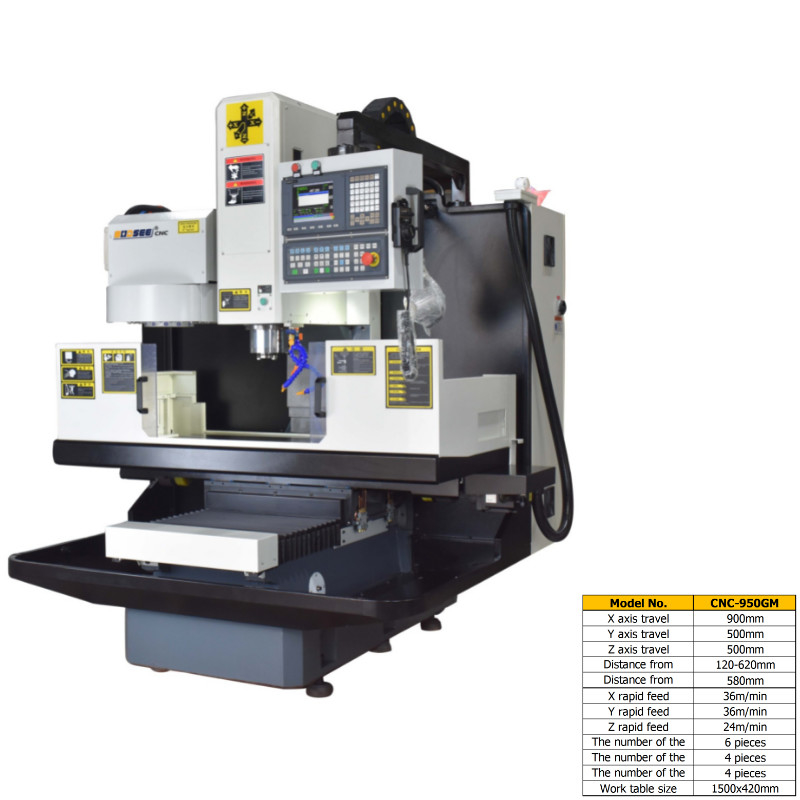

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy
Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy
Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy

Large Image :  Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy

Description
Positioning Accuracy: 0.01mm Spindle Speed Range: 20-8000rpm/min
Taper Of Spindle Hole: BT40 Tool Changer: Carousel Tool Changer
Dimension Of Machine Tool: 1950x1700x2300 Mm Triaxial Screw Size: 40/12mm
High Light:

Vertical Precision CNC Machining Center

,

0.01mm Accuracy Precision CNC Machining Center

Precision CNC Machining Center 0.01mm Positioning Accuracy CNC Vertical Machining Center Linearguide Ways



Product Description:

CNC-950GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system. it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.



Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG

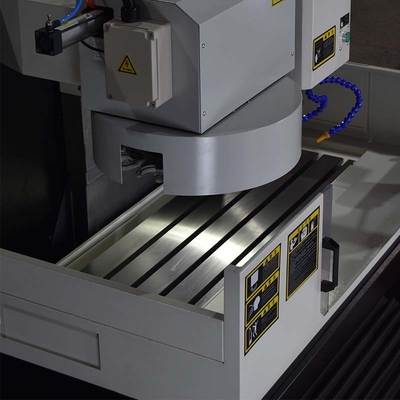

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy 0





Product Features:

1. Easy accessibility of work table for easy setup and tooling.

2. Made of high-density, high rigidity material, high strength and good wear resistance.

3. High degree of automation and intelligence, no pollution.

4. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy 1

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy 2





Workpiece sample:

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy 3





Our Exhibition:

Vertical Precision CNC Machining Center 0.01mm Positioning Accuracy 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
