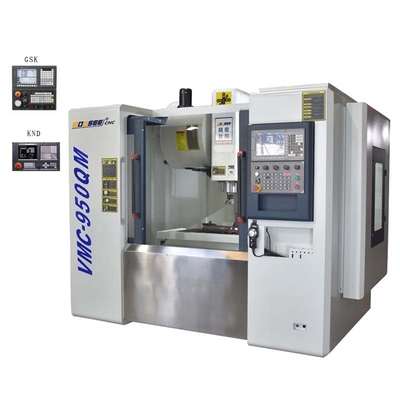

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System
Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System
Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System

Large Image :  Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System

Description
The Width Of Grooves: 18mm Y Axis Travel: 500mm
Distance From Spindle Nose To The Work Table: 120-620mm The Number Of The Slider In The Z Axis: 4 Pieces
The Maximum Load Capacity: 400KG Spindle Speed Range: 20-8000rpm/min
High Light:

Vertical High Precision CNC Milling Machine

,

MITSUBISHI High Precision CNC Milling Machine

High Precision CNC Machining Center With FANUC / SINUMERIK / MITSUBISHI / BODSEE System



Product Description:

The CNC-950QM CNC machines is suitable for mechanical processing and mold making, it is a numerical control machine with superior cost performance and equipped with a numerical control system.The efficiency of ordinary equipment is 5 to 10 times, it can also finish many working procedures like milling, drilling, tapping, boring, etc.

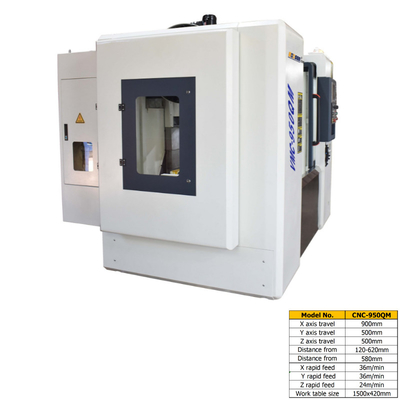

Product Specification:

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System 0





Product Features:

1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron.

2. It adopts special casting process to improve the mechanical properties of materials.

3. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process.

4. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System 1

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System 2





Workpiece Sample:

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System 3





Our Exhibition:

Vertical High Precision CNC Milling Machine FANUC SINUMERIK MITSUBISHI System 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
