Product Details:
|
| Positioning Accuracy: | 0.01mm | Repeat Positioning Accuracy: | 0.008mm |
|---|---|---|---|
| The Spindle Of Output Power: | 5.5KW | Tool Changer: | Carousel Tool Changer |
| The Number Of Grooves: | 4pieces | The Number Of The Slider In The X Axis: | 6 Pieces |
| High Light: | High Rigidity CNC Vertical Milling Machine,BT40 Spindle CNC Vertical Milling Machine |
||

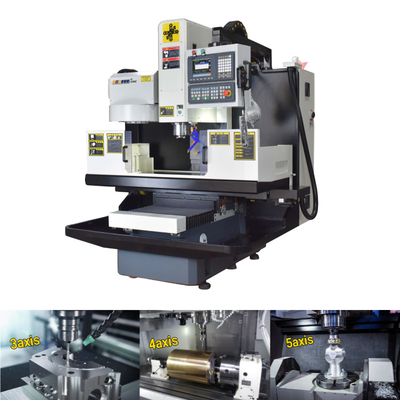

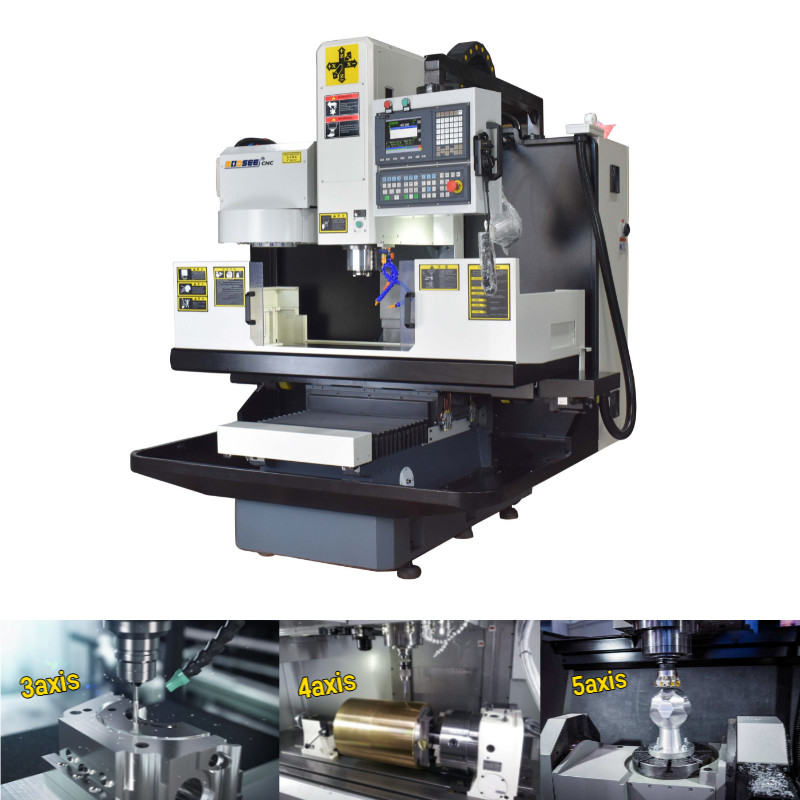

High Rigidity 3 Axis BT40 Spindle CNC Vertical Milling Machine 400KG Max Load
Product Description:
CNC-950GM CNC Vertical Machining is the world's highest yield, the most widely used one of the CNC machine tools.
It can also finish many working procedures like milling, drilling, tapping, boring, etc.
1. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.
2. The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.
3. The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.
Product Specification:
| Model No. | CNC-950GM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5KW | |
| Cooling box form | Independent | |

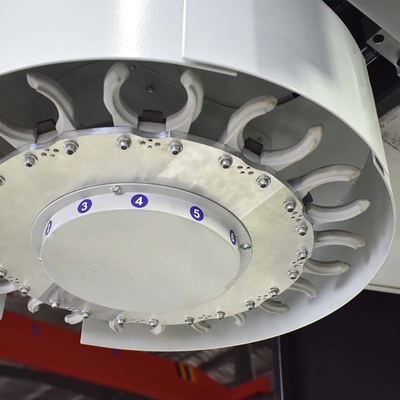

| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12pieces | |
| Dimension of machine tool | 1950/1700/2300mm | |
| Weight of machine | 2250KG | |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Samples:
Our Exhibition:
FAQ:
1. Are you a manufacturer or a trader?
It depends on customers’ requirement and quantity.
5. What is the MOQ?
MOQ is 1 set.
