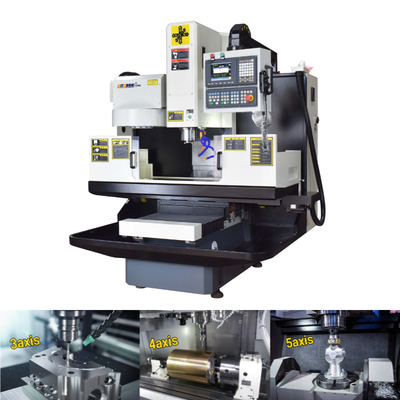

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed
400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed
400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed

Large Image :  400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed

Description
Y Rapid Feed: 36m/min The Number Of The Slider In The Z Axis: 4 Pieces
The Maximum Load Capacity: 400KG Feed Axis Motor Power: 1.8/1.8/2.5KW
Feed Motor Connection Form: Direct Connection The Spindle Of Output Power: 5.5KW
High Light:

400KG VMC CNC Milling Machine

,

Vertical VMC CNC Milling Machine

,

36m/Min Vertical CNC Lathe Machine

36m/Min X Rapid Feed CNC VMC Machine 400 Max Load CNC Milling Machine



Product Description:

CNC-950GM CNC Vertical Machining is the world's highest yield, the most widely used one of the CNC machine tools.

It can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.

1. Large travel: larger travels in all three directions than those of the same specifications in the market.

2. Cooling system.

3. Heat exchanger for electrical cabinet ;

4. Leveling blocks & bolts;

5. Toolbox and tools.



Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

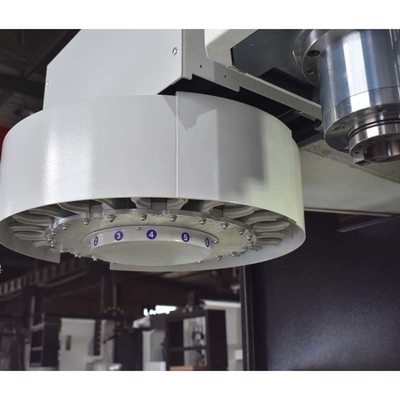

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG



400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 1

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 2



Workpiece Samples:

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 3





Our Exhibition:

400KG Max Load VMC CNC Milling Machine Vertical Lathe 36m/Min X Rapid Feed 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your lead time?

It depends on customers’ requirement and quantity.

5. What is the MOQ?

MOQ is 1 set.
