Product Details:
|
| X Axis Travel: | 950mm | X/Y Axis Feed Motor Rated Output Torque: | 7.7-8.4Nm |
|---|---|---|---|
| The Number Of The Slider In The Y Axis: | 4 Pieces | The Maximum Load Capacity: | 400KG |
| Spindle Speed Range: | 20-8000rpm/min | ||
| High Light: | 950mm Vertical Milling Center Machine,CNC 950mm Vertical Milling Center Machine,Industrial 950mm Vertical Milling Center Machine |
||

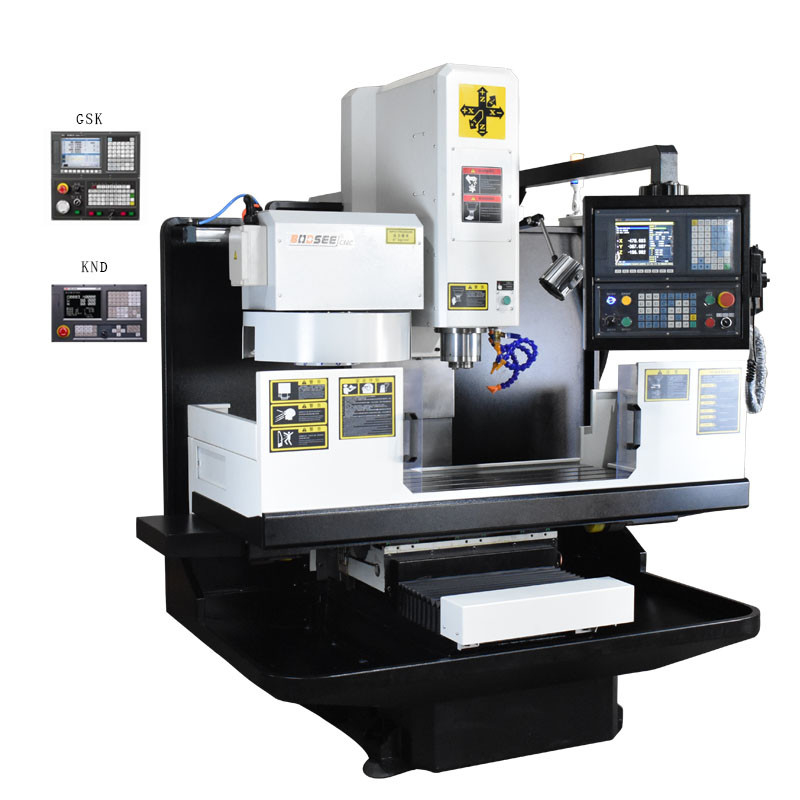

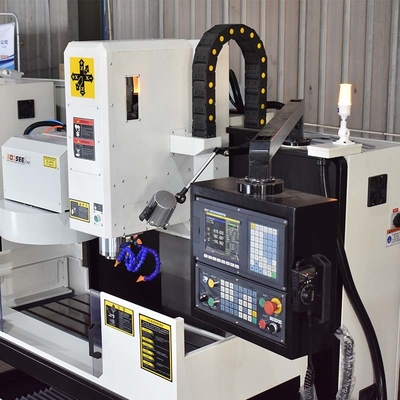

Industrial Vertical Milling Center Machine 950mm X Axis Travel And 400kg Max Load 3 Axis CNC Milling Machine
Product Description:
CNC VMC is is suitable for mechanical processing and mold making. With 950mm long x axis travel, 380mm Y axis travel.
Production Specification:
| Model No. | CNC-940GM | |
| X axis travel | 950mm | |
| Y axis travel | 380mm | |
| Z axis travel | 450mm | |
| Distance from spindle nose to the work table | 120mm | |
| Distance from spindle center to column guideway | 460mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| X/Y axis feed motor rated power | 1.6/2.0kw | |
| X/Y axis feed motor rated output torque | 7.7-8.4Nm | |
| Z axis feed motor rated power | 2.6kw | |
| Z axis feed motor rated output torque | 10Nm | |
| Cutting rapid feed | 0-8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Main servo motor rated power | 3.7kw | |
| Main servo motor 30 minute locked-rotor power | 5.5kw | |
| Main servo motor rated output torque | 24Nm | |
| Spindle sssembly dynamic balance mode | G1 | |
| Feed motor connection form | Direct connection | |
| Taper of spindle hole | BT40 | |
| Tool changer | Carousel tool changer | |
| Tool Capacity | 12piece | |
| Max tool diameter (Full) | Ф75mm | |
| Max tool weight | 7kg | |
| Max tool length | 300mm | |
| Cutting Tool Selection Mode | Forward and reverse arbitrary tool selection | |
| Machine tool electric gross capacity | 10KVA | |
| Power requirements | Customized | |
| Dimension of machine tool | 1950x1600x2000 mm | |
| Weight of machine | 1950KG | |
| Machine protection shield | Half Cover/Semi enclosed | |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
3. What's the MOQ?
MOQ is 1 set.
4. Where is our factory located? How can I visit there?
A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.
