Product Details:
|
| The Number Of The Slider In The Z Axis: | 4 Pieces | Weight Of Machine: | 1950KG |
|---|---|---|---|
| Distance From Spindle Nose To The Work Table: | 120mm | Cutting Rapid Feed: | 0-8000mm/min |
| High Light: | Vertical Industrial CNC Milling Machine,VMC Industrial CNC Milling Machine |
||

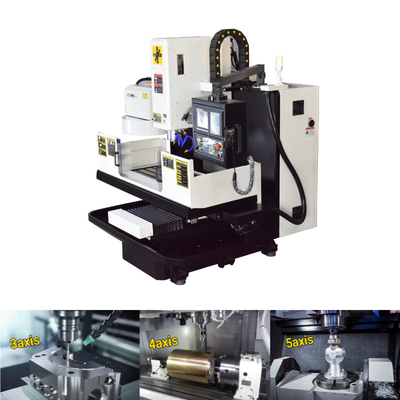

12pcs Carousel Tool Changer VMC Vertical Machining Center 400KG Max Load
Production Description:
This VMC is suitable for mechanical processing and mold making. It can realize hole-machining operations such as drilling, counterboring, reaming,Boring, and tapping processing for various complex parts such as discs, plates, shells, cams, molds, etc.
Production Specification:
| Model No. | CNC-940GM | |
| X axis travel | 950mm | |
| Y axis travel | 380mm | |
| Z axis travel | 450mm | |
| Distance from spindle nose to the work table | 120mm | |
| Distance from spindle center to column guideway | 460mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| X/Y axis feed motor rated power | 1.6/2.0kw | |
| X/Y axis feed motor rated output torque | 7.7-8.4Nm | |
| Z axis feed motor rated power | 2.6kw | |
| Z axis feed motor rated output torque | 10Nm | |
| Cutting rapid feed | 0-8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Main servo motor rated power | 3.7kw | |
| Main servo motor 30 minute locked-rotor power | 5.5kw | |
| Main servo motor rated output torque | 24Nm | |
| Spindle sssembly dynamic balance mode | G1 | |
| Feed motor connection form | Direct connection | |
| Taper of spindle hole | BT40 | |
| Tool changer | Carousel tool changer | |
| Tool Capacity | 12piece | |
| Max tool diameter (Full) | Ф75mm | |
| Max tool weight | 7kg | |
| Max tool length | 300mm | |
| Cutting Tool Selection Mode | Forward and reverse arbitrary tool selection | |
| Machine tool electric gross capacity | 10KVA | |
| Power requirements | Customized | |
| Dimension of machine tool | 1950x1600x2000 mm | |
| Weight of machine | 1950KG | |
| Machine protection shield | Half Cover/Semi enclosed | |
Product Features:
1. 12 pcs Tool Capacity
2. BT40 spindle
3. 400kg Max Load Capacity
4. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.
4. What is your lead time?
It depends on customers’ requirement and quantity.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
