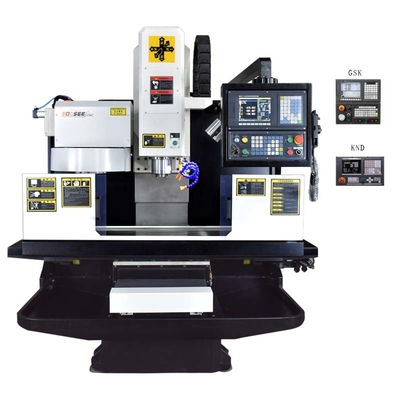

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range
VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range
VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range

Large Image :  VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range

Description
Tool Changer: Carousel Tool Changer Tool Capacity: 12pieces
Max Tool Diameter (Full): Ф75mm Max Tool Weight: 7kg
Max Tool Length: 300mm
High Light:

VMC Small 3 Axis CNC Milling Machine

,

8000rpm/Min Small 3 Axis CNC Milling Machine

VMC Vertical Machining Center 20-8000rpm/Min Spindle Speed Range 3 Axis Cnc Milling Machine



Product Description:

This VMC is suitable for mechanical processing and mold making. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece.





Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed





VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range 0





Product Features:

1. High strength resin sand casting

2. BT40 spindle

3. 3 axis

4. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range 1

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range 2





Workpiece Sample:

VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range 3



VMC Small 3 Axis CNC Milling Machine 20 - 8000rpm/Min Spindle Speed Range 4





FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3.Where is our factory located? How can I visit there?

Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.

What is your lead time?

It depends on customers’ requirement and quantity.
