Product Details:
|
| X Axis Travel: | 1200mm | Y Axis Travel: | 500mm |
|---|---|---|---|
| Z Axis Travel: | 500mm | X Rapid Feed: | 36m/min |
| Y Rapid Feed: | 36m/min | Z Rapid Feed: | 24m/min |
| Work Table Size: | 1800x420mm | The Maximum Load Capacity: | 400KG |
| High Light: | 1200mm 3 Axis CNC Machine,400KG 3 Axis CNC Machine |
||

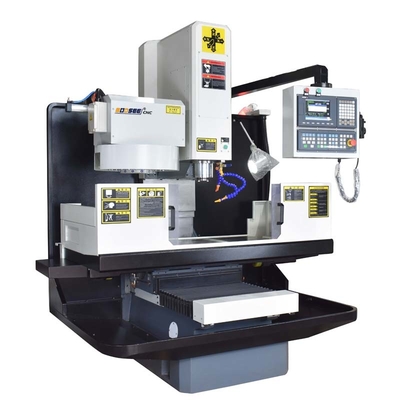

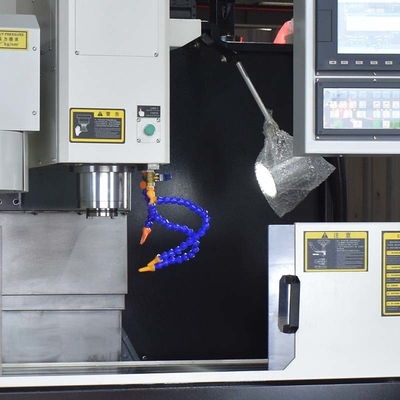

1200mm X Axis Travel 12/24pcs Tool Capacity 3 Axis CNC Milling Machine
Product Features:
1. High rigidity and great ability of shock absorption.
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
Product Specification:
| Model No. | CNC-1250GM | |
| X axis travel | 1200mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1800x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5/7.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12/24pieces | |
| Dimension of machine tool | 2250*1700*2300mm | |
| Weight of machine | 2450KG | |
Product Description:
CNC VMC is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
FAQ:
Q1. How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, Vertical VMC Milling Machine.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
Q4. What's the MOQ?
A: MOQ is 1 set.
Q5: What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
