5440 RPM Spindle Speed Turret Taiwan Milling Machine 127mm Spindle Travel

I'm Online Chat Now

5440 RPM Spindle Speed Turret Taiwan Milling Machine 127mm Spindle Travel

China 5440 RPM Spindle Speed Turret Taiwan Milling Machine 127mm Spindle Travel supplier

Large Image :  5440 RPM Spindle Speed Turret Taiwan Milling Machine 127mm Spindle Travel

Product Details:

Place of Origin: CHINA
Brand Name: Taesin
Certification: ISO CE
Model Number: TX-3MA

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood Box or Nude with Plastic Film
Delivery Time: 15 Days
Payment Terms: TT or LC
Supply Ability: 100000 Set Per Year
Contact Now
Detailed Product Description
Work Table Size: 1270*254mm Spindle Speed: 80 To 5440 RPM
Spindle Horse: 3HP Spindle Taper: R-8 Or NT30
Weight: 1280KG Spindle Travel: 127mm

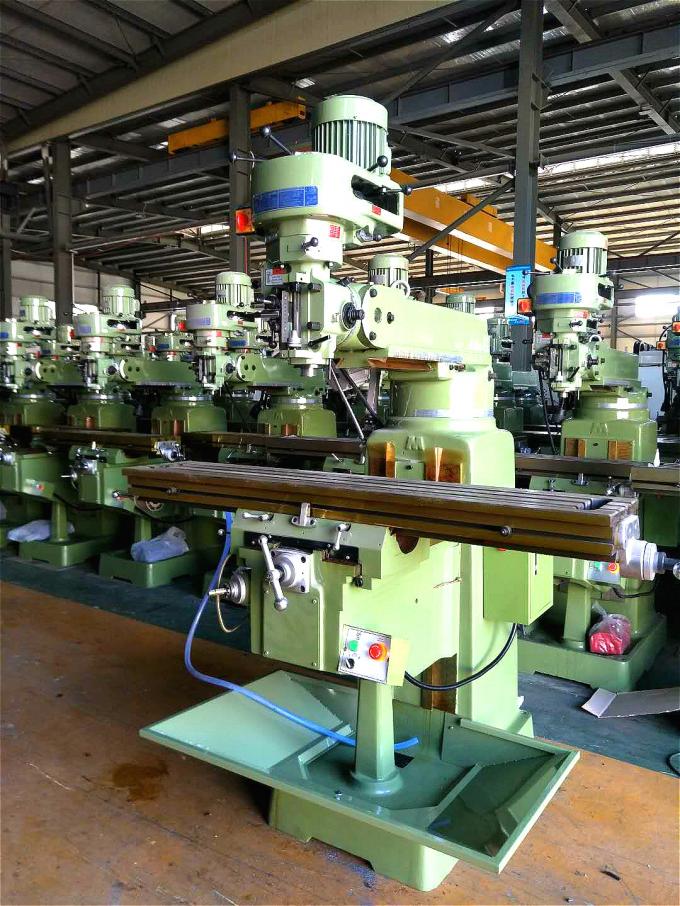

5440 RPM Spindle Speed Turret Taiwan Milling Machine 127mm Spindle Travel


Turret Milling Machine Features:
Tested Quality - ISO 9001 Certified
3 Hp 3-Phase 220/440VAC Spindle Motors
Hard Chromed Powered Quill - Up and Down - Feed Select: 0.0015, 0.003, 0.006 in/rev
Tempered and Carburized Chrome Molybdenum Steel Spindle
NSK or Nachi ABEC-7 Angular Contact Precision Spindle Bearings
R8 or NT30 Spindle Taper - 100% Factory Test Data Provided
Ram Rotation (Deg) 90 left/right, 0-45 front/back*, 360 Orbital
Induction Hardened & Precision Ground Table & Ways
PBC-2 Phosphor Bronze Backlash Adjustable Lead Screw Nuts
Full Length Precision Ground Gibbs with Double End Adjustments
Turcite-B X&Y Saddle Ways - Precision Hand Scraping Throughout
Widest Knee Way Guards - Double Travel Locks
Control Box with 110/220VAC Outlets - On/Off/E-Stop Switch Box and Indicator Light
Manual 1-Shot Lubrication System - Automatic Optional
35 Watt Halogen Work Lamp - 50 Watt Optional
Draw Bar, Tool Box With Operation Manual And Test Data
Includes Leveling Pads - Lift Eye - Rear Ram Eye
SC250 Superior Rigidity - Uniquely Structured Castings

     The turret milling machine is considered as a versatile machine, because it can create a wide array of shapes. Turret milling machines are very effective in low-precision milling. The turret milling machine has a vertical spindle remaining stationary when doing machining. Only the work table, where the metal is placed, moves.
Taesin Turret Milling Machine Technical Service:
1. Installation and Testing: Our engineer provide free installation and testing, and train local operator and mechanic; Buyer should bear the cost of flight ticket, food and hotel.
2. Technology Support: According to the finished product features, engineer will adjust related CNC machine parameters and train local operator and mechanic.
3. Guarantee: 12 Months after successful running; Any damage because of quality during 12 months, Seller will be responsible and provide the parts for free.
4. Within 24 Months, we provide software technology consulting service.
5. Spare Parts Supply: For providing better service, our company would like to provide the spares parts at the cost price.


Taesin Turret Milling Machine Inspection and Acceptance:
1. Acceptance Standard: According to the technical requirement and parameter.
2. Inspection and Acceptance Requirement:
     Inspection and acceptance can be done after testing in manufacturer’s factory. Geometric and positioning accuracy inspection, and do machining on spot. Make sure the processing accuracy and range meet technical requirement. Machine can be delivered after both of seller and buyer sign.
The machine is also inspected by our advanced engineers using the laser interferometer for the positioning deviation&repeatability according to the highest standard. The machine is also checked for its geometrical accuracies before delivering.

    The Turret Milling Machine is also tested in our company with the related workpieces and required tool. And in the process, our engineer also fully inspected the testing process and achieve the highest precision.
Before delivering, we also verify all parameters against machine specification and technical data. Machine will run continuously for 8 hours at full rated parameters. After the running test, the machine should be under perfect working condition. After installation and commissioning, we guarantee that positional and geometrical accuracy values will be verified.


Taesin Turret Milling Machine Packing:

   For the packing, we provide faultless packing to avoid any damage or deterioration during delivering to the final destination.The packing can withstand rough handling during transit and exposure to extreme weather. We had taken various factor into consideration for designing and producing the durable package.


Turret Milling Machine Technical Data:


Technical Data
Model

MC43M3MB
Working Table Size (mm)1270*2541270*2541370*280
X Axis Travel (mm)680745860
Y Axis Travel (mm)360400400
Z Axis Travel (mm)400350350
Quill Diameter (mm)858686
Spindle Travel (mm)127127127
Spindle Speed RPM80-544080-5400rpm80-5440
Spindle TaperR-8 (NT30)R-8 (NT30)R-8 (NT30)
Spindle Horsepower3HP3HP3HP
Spindle to Table Distance (mm)440440440
Size (mm)1800*1650*23001600*1700*22001600*1700*2200
Weight KG138012001350
